RTFA - Specialist
FAB3W 3m Webbing Fall Arrest Block

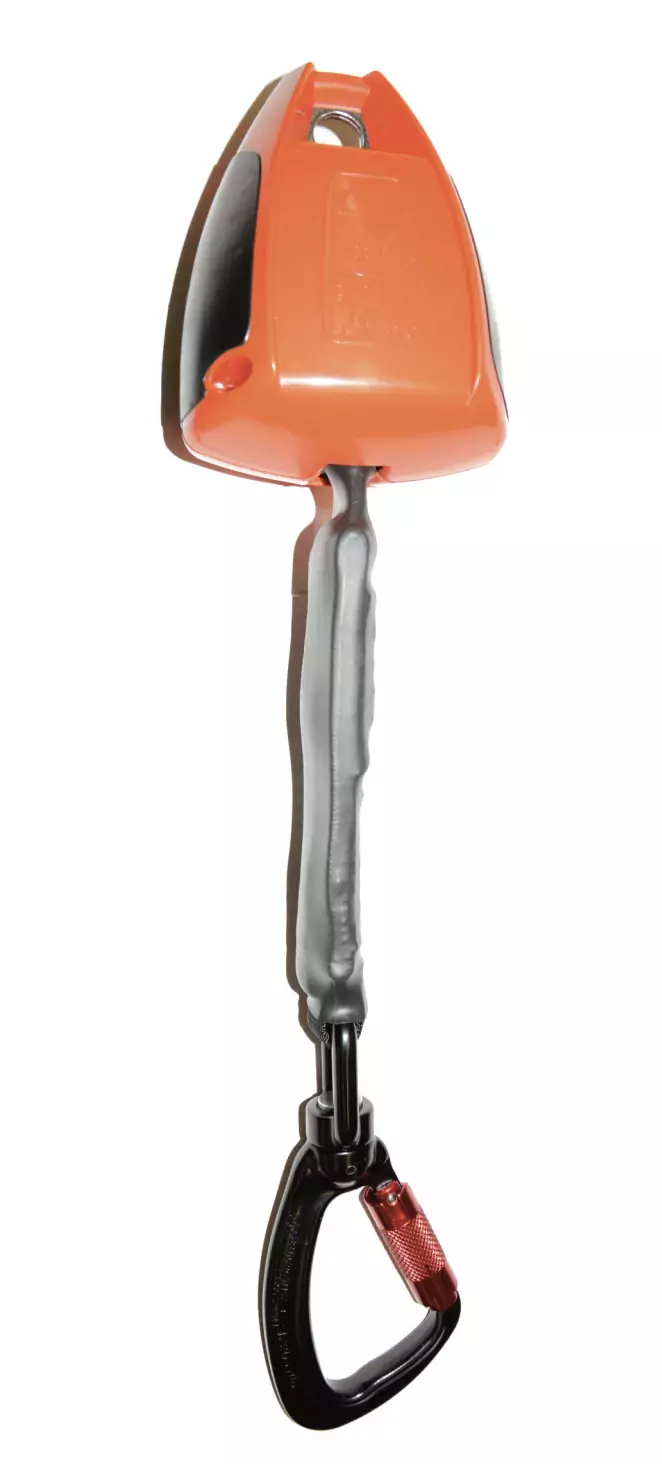

The FAB3W is a lightweight palm size Fall Arrest Block and is so light it can be mounted directly to the users harness via the rear D connector. Also available as a dual assembly for 100% tie off whilst moving between anchorages whilst moving around a structure.
- Grips: TPE
- Capacity: 3m/10ft or 4m/13ft
- Maximum arresting force: 6kN (EN) / 1800lbs (ANSI Class A)
- User weight: 150kg (330lbs) max [EN] / 140kg (310lbs) max [ANSI]
Principal Materials
- External housings: PC/ABS high strength and rigidity, UV stabilised
- Chassis: hot rolled steel, zinc plated & passivated
- Pawls: hardened steel, zinc plated & passivated
- Bearing plates: PTFE
- Fixings: stainless steel
- Swivel hook: alloy (EN rated 25kN) / steel (ANSI rated 40kN)
- Top connector: EN 362 alloy twist lock karabiner / ANSI Z359.12 steel twist lock karabiner
- Bottom connector: EN 362 alloy swivel triple action twist lock karabiner / ANSI Z359.12 steel swivel triple action karabiner
- Dyneema polyester webbing: 22mm, minimum breaking load 15kN
Standards
- EN 360
- ANSI Z359.14-2012 Class A
- OSHA 1910.66 App.C
- OSHA 1926 Subpart M
