Systems - Specialist

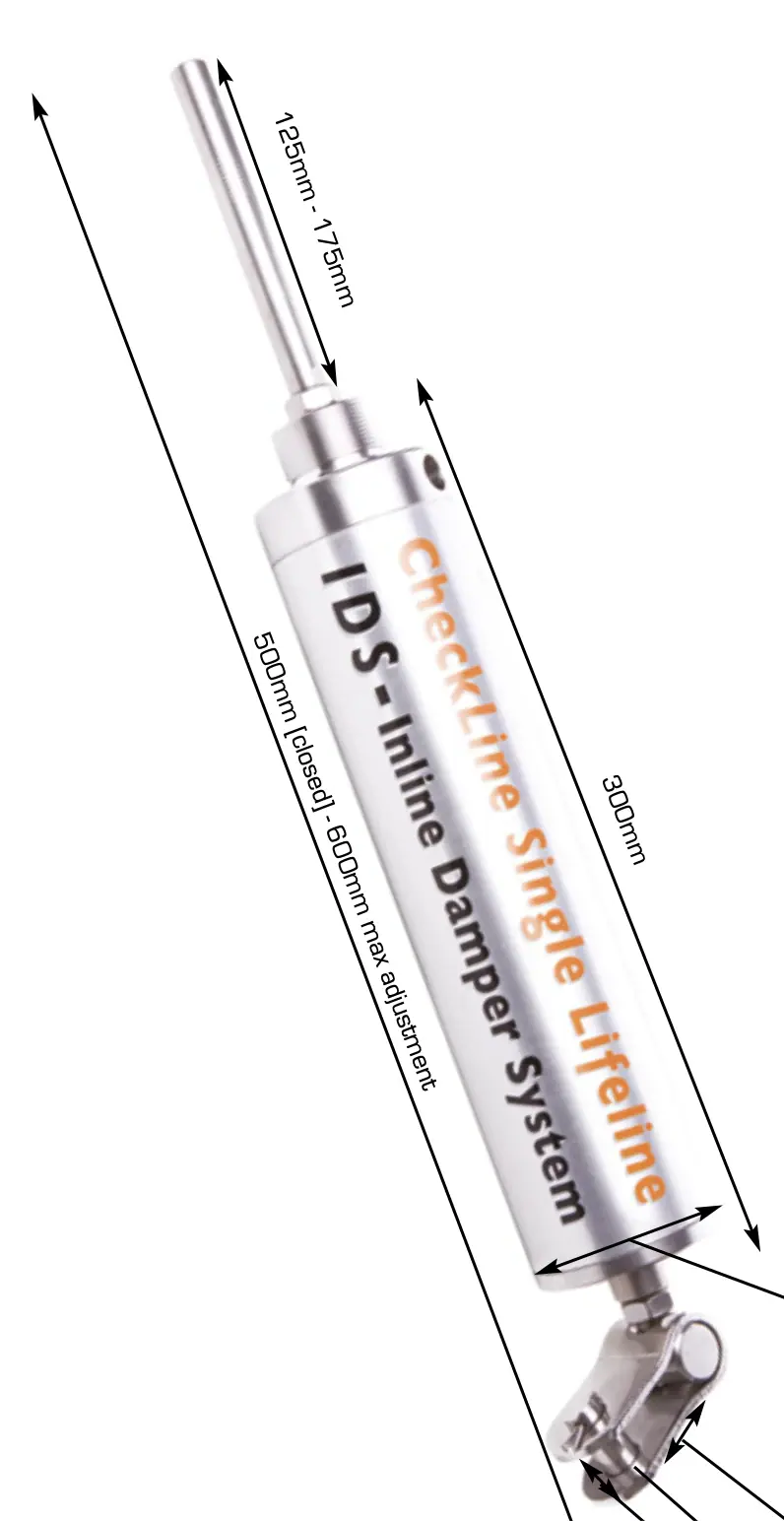

PPESLL-115 Inline Damper
The Inline Damper is used as an energy reducing component in the Checkline system when fitted without TopFix posts. It is fitted at the end [with a Loadcell at the other end] and secured to the cable using an approved crimper. Alternatively the Damper can be connected to the wire rope via a swageless adjuster (PPESLL-110A) negating the need for a crimper.
Damper Unit: The rubber damper unit reduces load forces by up to 40%.
Aluminium Alloy: The damper body is manufactured from Aluminium alloy to reduce weight.
System Integration: The loadcell can be installed by crimping to the wire rope or via a swageless adjuster.
Toggle Fork: The toggle fork allows for quick and simple connection to an end post or end anchor.
