RTFA - Specialist
FABXR Recovery Block with Tripod Bracket

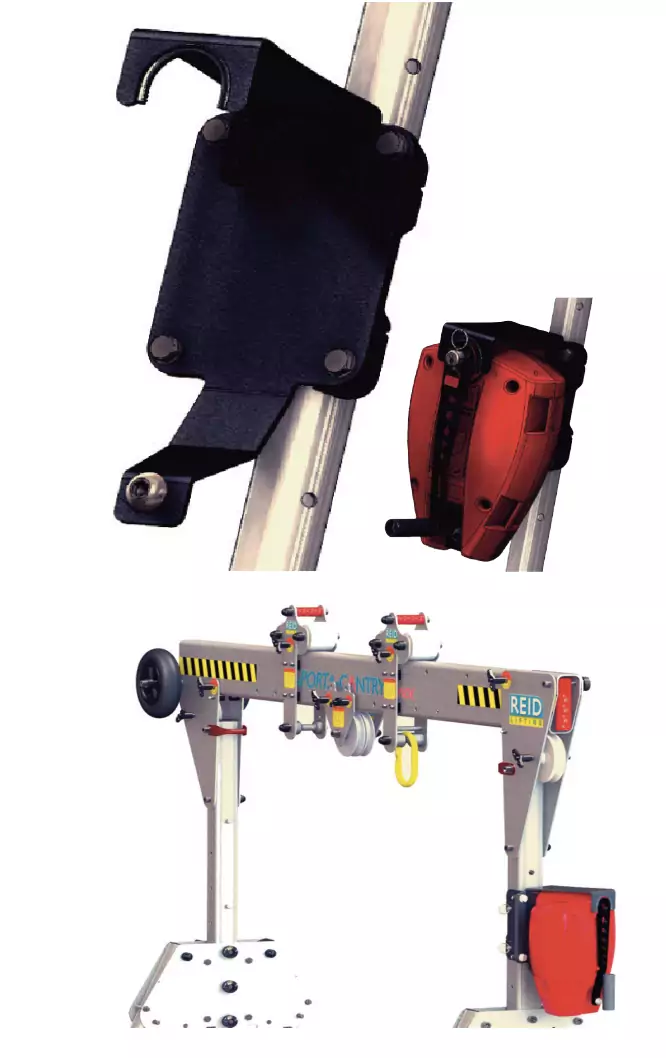

The FABXR-DB is an adjustable bracket designed to mount the FABXR to the Checkmate TR2/TR3 Tripod and the Reid PORTA-GANTRY RAPIDE.
- FABXR 15m Fall Arrest Block with Emergency Rescue Function (11.5kg)
- FABXR-DB Bracket to fit FABXR to TR2/TR3 Tripod (3kg)
- One fixing to attach to bracket, negates need for tools to fix to TR3 on site
- Markings to indicate correct fixings for TR3 and PORTA-GANTRY RAPIDE
- 3-piece design allows tailored fixings (additional cost)
- Compatible with Checkmate TR2/TR3 Tripod & REID PORTA-GANTRY RAPIDE (may be compatible in other applications on request)
- FABXR can remain in bracket at all times and does not require removal when fitting to gantry or tripod
- User weight capacity: 150kg maximum
Principal Materials
- High tensile hot rolled steel
Finish
- Powder coat EN409 black leatherette gloss
Standards
- EN 360
- EN 1496 A/B
