RTFA - Specialist

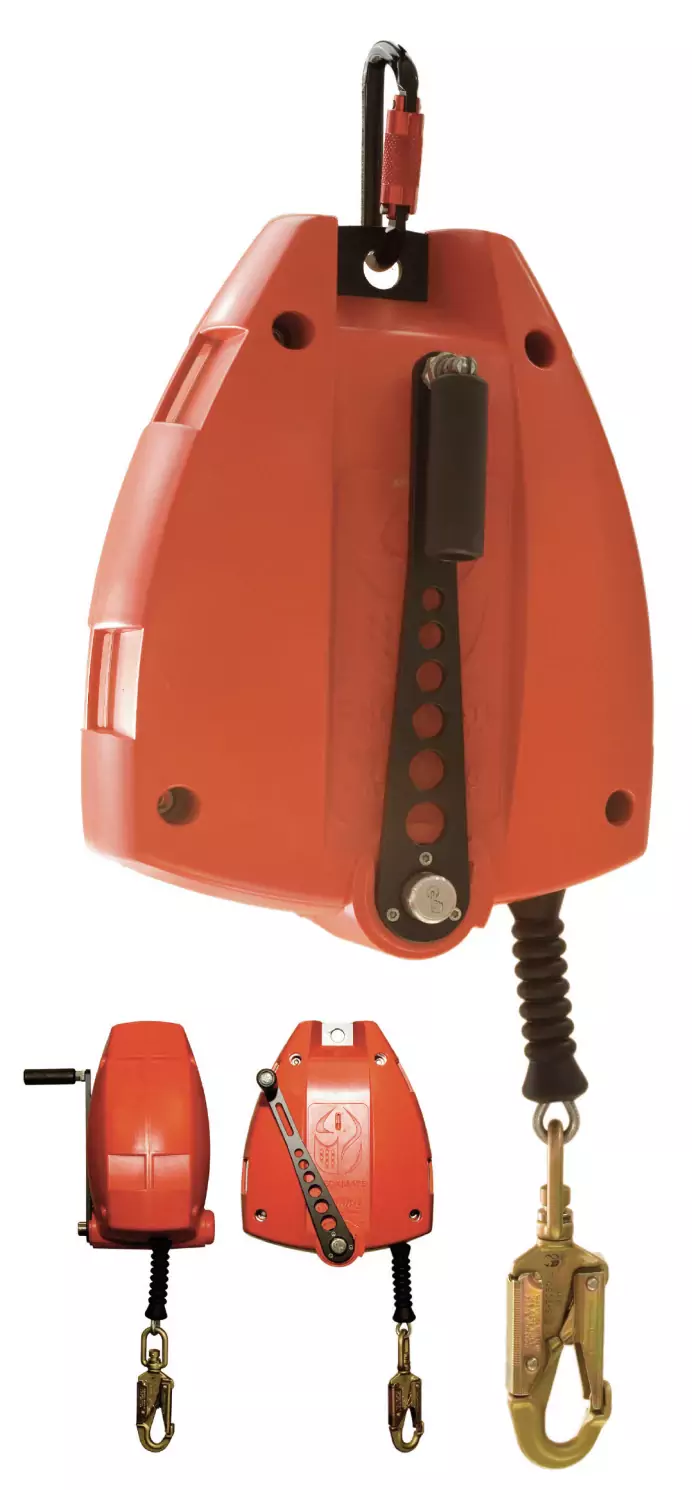

FABXLR Fall Arrest Block with Recovery Winch
The FABXLR functions as a standard Fall Arrest Block, but in the event of a fall the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker.
- Capacity: up to 40m (130ft) / SS wire rope up to 35m (115ft)
- Swivel load indicating hook: steel swivel snap rated to 23kN
- Maximum arresting force: < 6.0kN
- User weight: 136kg maximum (300lb)
Principal Materials
- External housings: PC/ABS high strength and rigidity, UV stabilised
- Shaft: T6 aluminium hard anodised
- Chassis: hot rolled steel powder coated
- Pawls: stainless steel
Standards
- EN 360
- ANSI Z359.14:2012
- EN 1496 Class A/B
