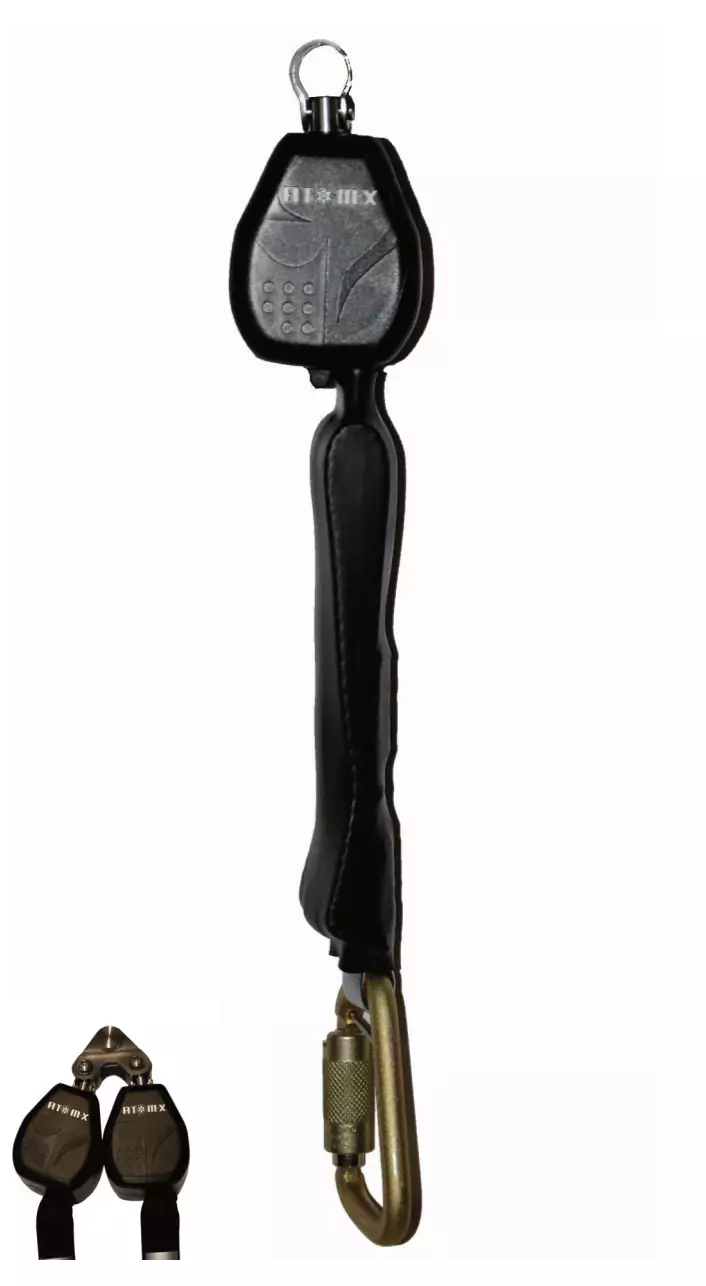

ATOM-X2 Twin Fall Arrest Block
ATOM-X is the smallest and lightest fall arrest block in its class in the world. Its lightweight chassis, PC ABS housing and Dyneema® webbing contribute to its outstanding strength and performance.
The ATOM-X2 is a variant of the ATOM-X, which has an increased shock absorbing capability allowing the user to anchor at foot level. This is commonly refered to as a FALL FACTOR 2 situation.
By using a simple stainless steel yoke attachment system two ATOM-X’s can be linked together creating a dual or twin tail device.
- Anchorage connection: 11mm alloy twist lock karabiner approved to EN362, rated to 25kN
- Dyneema® webbing: 20mm, minimum breaking load 18kN
- Capacity: 2 metres
- Maximum arresting force: webbing < 6.0kN
- User weight: 136kg maximum
Principal Materials
- External housings: PC/ABS high strength and rigidity, UV stabilised
- Shaft: steel zinc plated & passivated
- Chassis: hot rolled steel zinc plated & passivated
- Pawl: hardened steel zinc plated & passivated
- Bearing plates: PTFE
- Aluminium snap hook: 23kN minimum breaking load, 16kN rated gate
Standards
- EN 360
